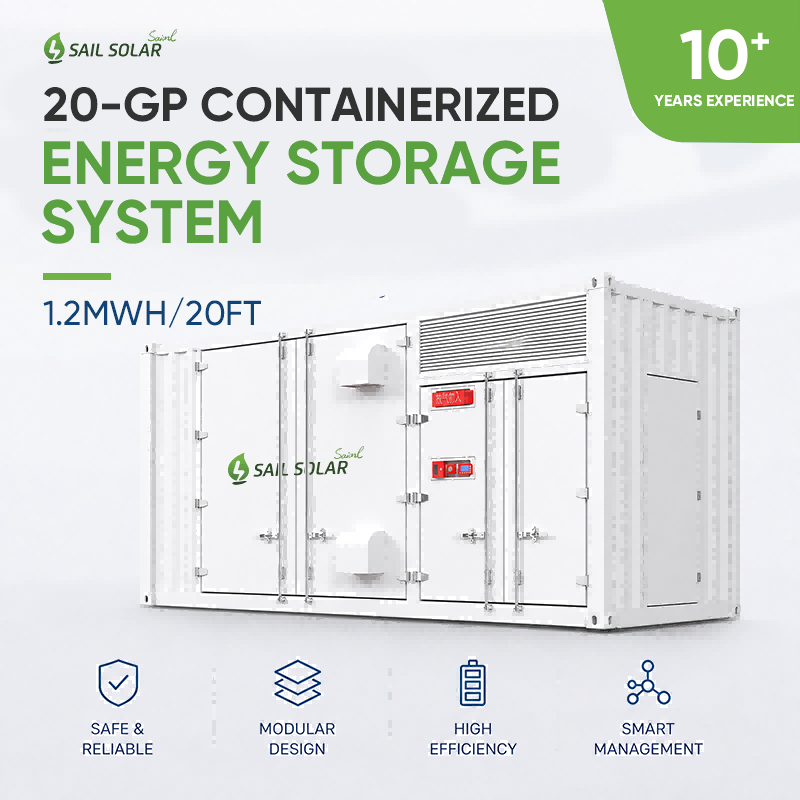

500KW 1000KWH All in One Energy Storagy System 20'ft Container BESS with Megarevo/Solis Inverter for C&I Use

Sail Solar 20'ft container 500kw 1000kwh is a fully integrated, plug-and-play energy storage solution for commercial and industrial (C&I) solar power projects and off/on-grid energy management. It integrates high-performance LiFePO4 battery packs, Inverter, intelligent BMS & EMS, precision HVAC temperature control, and multi-level fire protection systems in one pre-assembled container, eliminating complex on-site assembly and shortening commissioning time drastically.

Marca :
Sail Solar
Model Number :
BESS-C1000
System Configuration :
500kw+1000kwh
Grid Type :
Hybrid/Off-grid
Número de ciclos :
8000
Tipo de Bateria :
Lifepo4
Temperatura de operação :
0-50
Cooling :
Air-cooling
Dimensions (W*D*H) :
6058*2438*2896mm
Grau de proteção :
IP54

Informe-se agora

Detalhes do produto

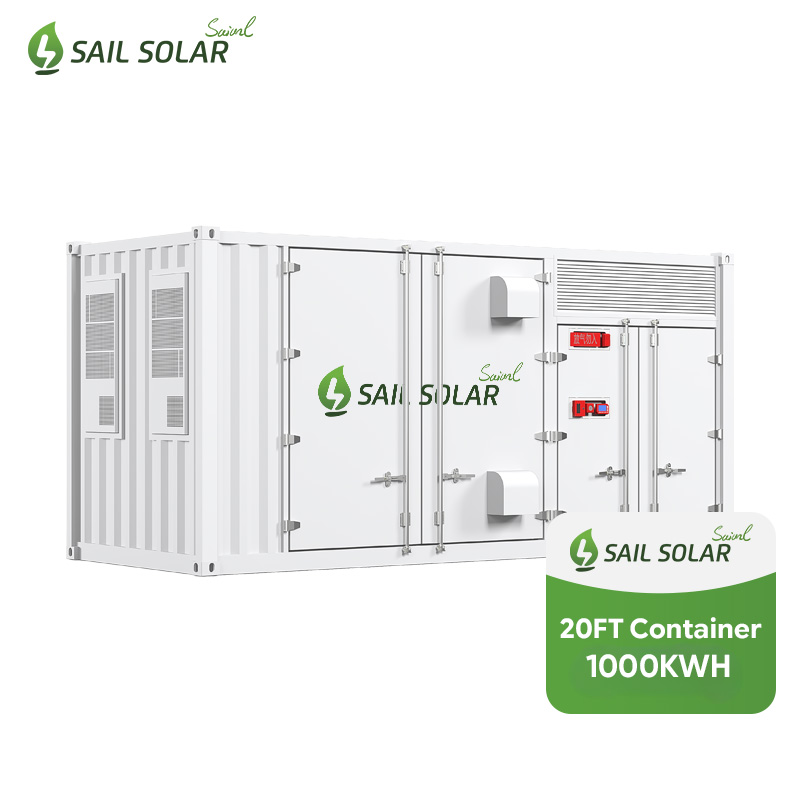

20'ft Containerized Energy Storage System 500KW+1000KWH

♦ Modular Design: Improves operational efficiency and confines fault impact within individual modules	♦ Flexible Deployment: Easy installation and seamless capacity scaling
♦ Reliable Safety: Modular fire‑protection for engine room with safety isolation partitions	♦ Wide Environmental Adaptability: Stable operation under ambient temperature up to 50℃
♦ High System Efficiency: +15% usable capacity; eliminates inter‑cluster DC circulating current for 2% efficiency gain	♦ Long Service Life: Designed for over 15‑year operational lifespan

Technical Datasheet of 20'ft container

Product Parameter

Battery Type	Lifepo4	Lifepo4
Rated Energy	1044KWH	1024KWH
Rated Voltage	665.6V	819.2V
Depth of Discharge	90%	90%
System Charging Rate	0.5C	0.5C
System Disharging Rate	0.5-1C	0.5-1C
Battery Configuration	65pcs of 51.2V 314AH	64pcs of 51.2V 314AH
Communication Mode	CANBUS/Modbus TCP/IP	CANBUS/Modbus TCP/IP
Efficiency	96%	96%

Inverter Data

Model	MPS500	S6-EH3P125K10-NV-YD-H
Rated Output Power	500KW	125KW
MPPT Voltage Range	250-850V	150-950V
Battery Voltage Range	500-850V	300-950V

System Wiring Introduction

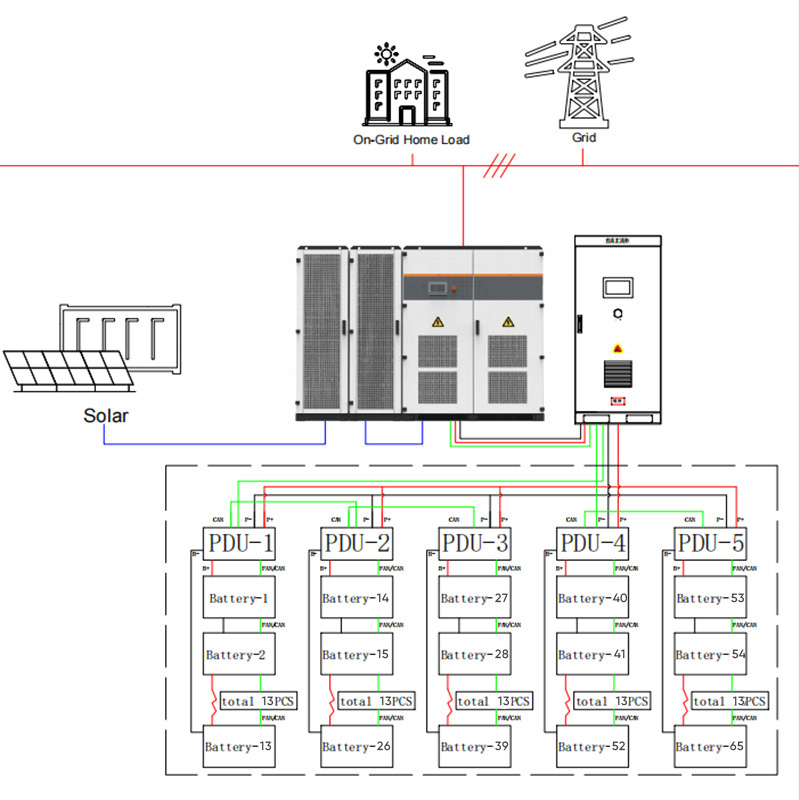

Option 1:
Single 500 kW integrated Megarevo inverter
13 battery modules connected in series for one string.
1 PDU is assigned to manage one string.
There are total 5 independent strings in parallel, 65 battery modules in total.

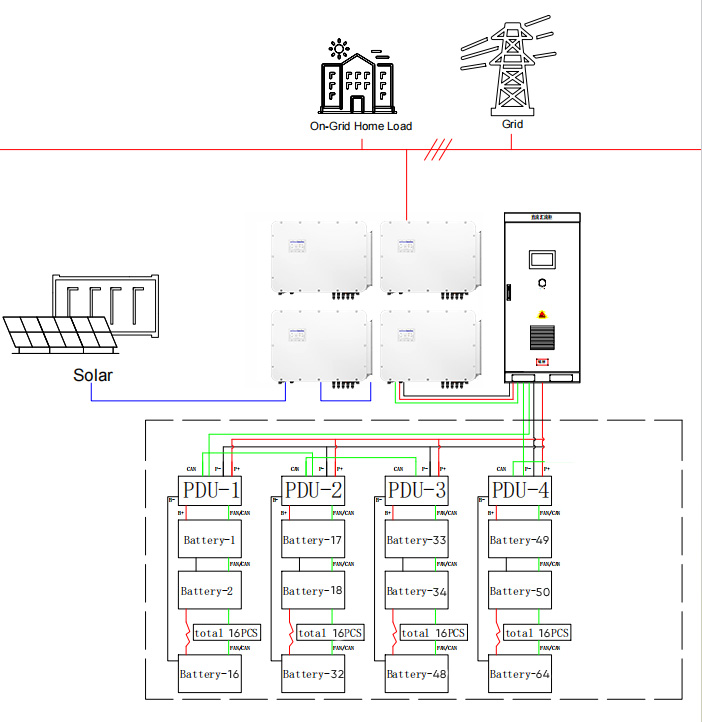

Option 2:
Four parallel Solis125 kW inverters (total 500 kW)
16 battery modules in series for one string, controlled by one PDU. There are 4 independent strings, with a total of 64 battery modules.

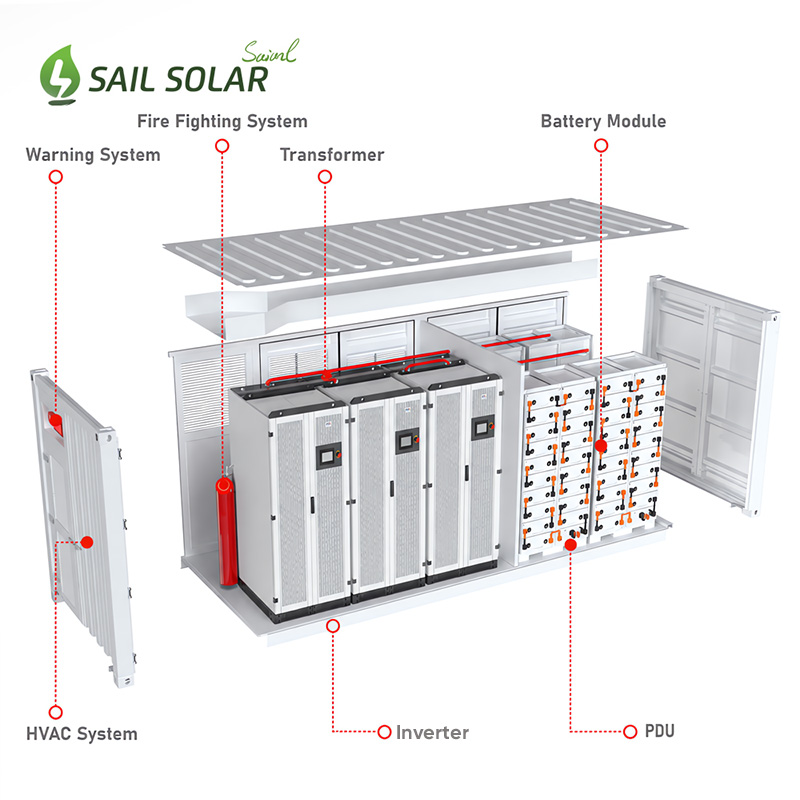

HVAC System

It stabilizes operating temperature for battery modules and power electronics, prevents overheating or low‑temperature derating.

Warning System

Continuously monitors temperature, smoke and electrical status across the container.

Fire Fighting System

Dedicated fire suppression responds rapidly upon fire hazard signals, executes fire‑extinguishing actions to protect battery and power equipment inside the cabinet.

Inverter

Performs DC‑AC power conversion between battery bank, solar PV input, grid and local C&I loads. It manages battery charging and discharging, and handles grid‑tied power exchange for peak shaving and solar self‑consumption.

PDU

Power distribution unit for each battery string. It conducts current distribution, over‑current protection, and collects real‑time battery data via CAN bus, supervising every series‑connected battery string independently.

Battery Module

Multiple modules are assembled in series to build high‑voltage battery strings, storing renewable energy and supplying power on demand.

Customer Visiting

The left are on‑site pictures taken during client factory visits.

Technical exchanges and project reviews are carried out to align technical requirements and project parameters.

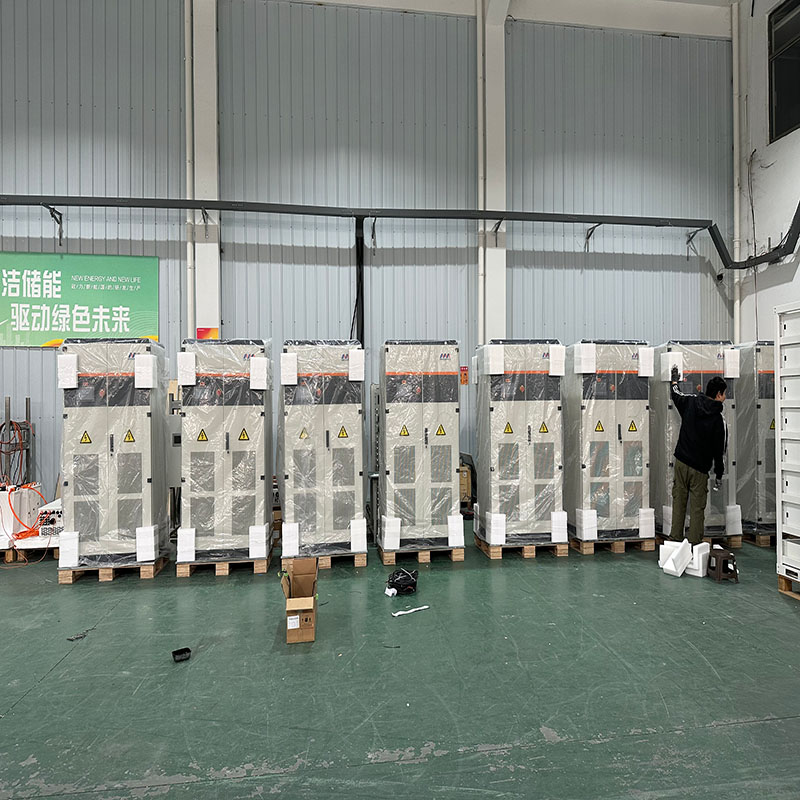

Product Pictures

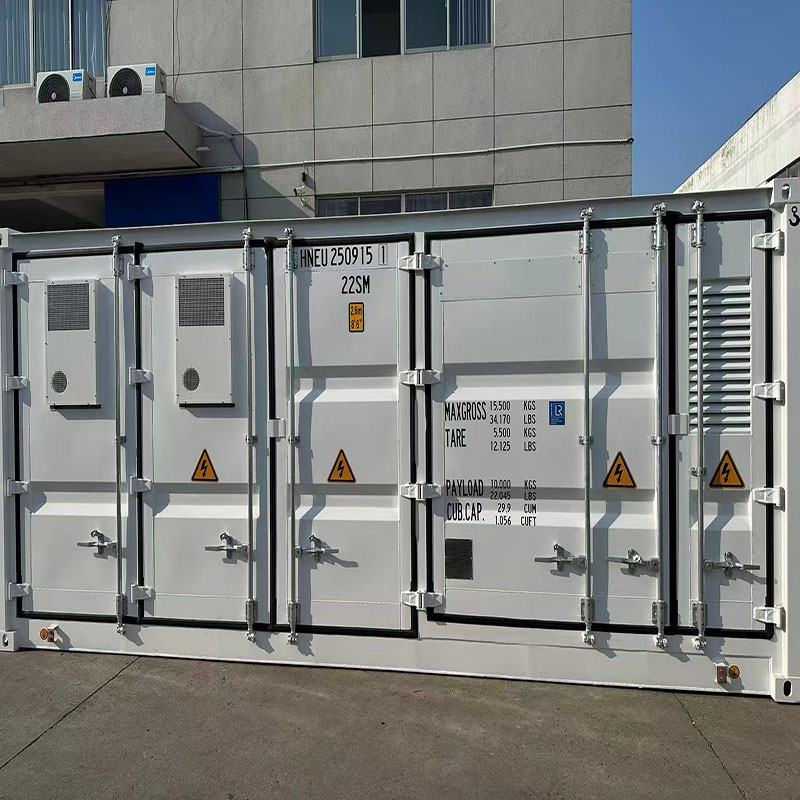

The left presents real‑site pictures of our 20ft 500kW/1000kWh containerized ESS container.

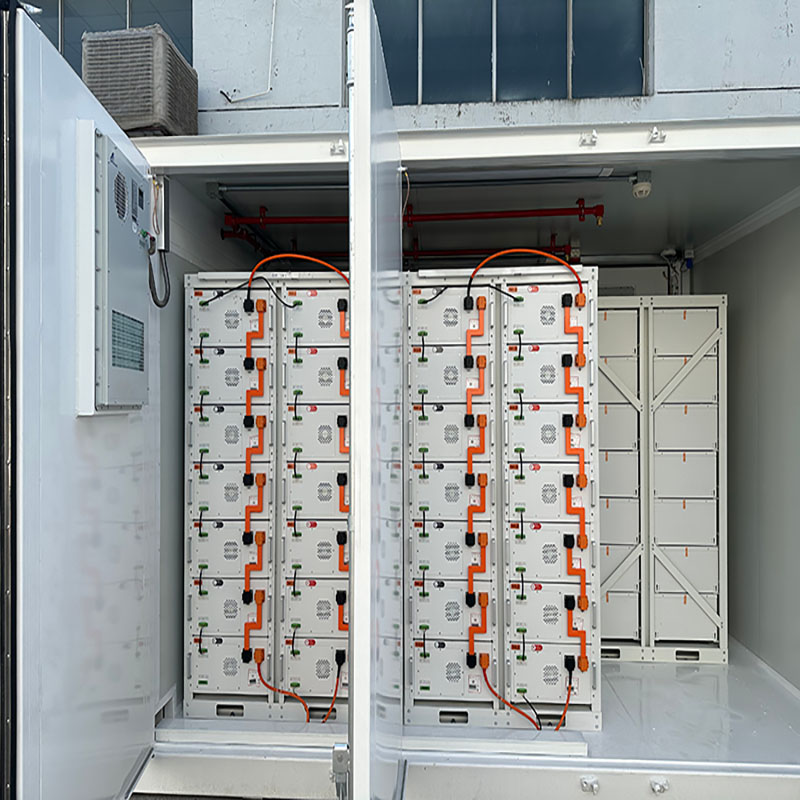

Images cover container outer appearance, internal battery rack layout. The unit is fully pre‑assembled inside the container prior to shipment. These pictures for your technical reference and project assessment.

People May Ask

1. How is the 20ft container BESS shipped? Is it fully pre-tested?

It is shipped as a complete single 20ft standard container unit, no split shipment. The entire system (batteries, PCS, BMS, cooling, fire system, wiring) is fully assembled and 100% factory tested before shipping. You receive one ready-to-deploy container, no missing parts, no on-site assembly confusion, and it fits all standard container ships and truck transport worldwide.

2. 20ft container ESS vs split indoor 500kw+1000kwh energy storage system: which is better?

For C&I users, container type is superior in most cases. Container ESS: outdoor deployable, no need to occupy valuable factory indoor production space, integrated fire & cooling system, no indoor fire safety pressure. Split indoor system: requires dedicated fire-proof room, professional ventilation, longer construction period, and higher civil engineering cost. For factories with limited indoor space or strict fire codes, 20ft container BESS is the safest and most economical choice.

3. Is the 20ft container easy to expand for future project upgrade?

Yes. The system supports parallel connection of multiple 20ft container units. If your factory load increases in the future, you can add more 500kW/1000kWh container or Sail Solar all in one 241kwh air-cooled outdoor cabinet, without abandoning existing equipment. It perfectly matches phased investment and scalable C&I energy storage projects.
